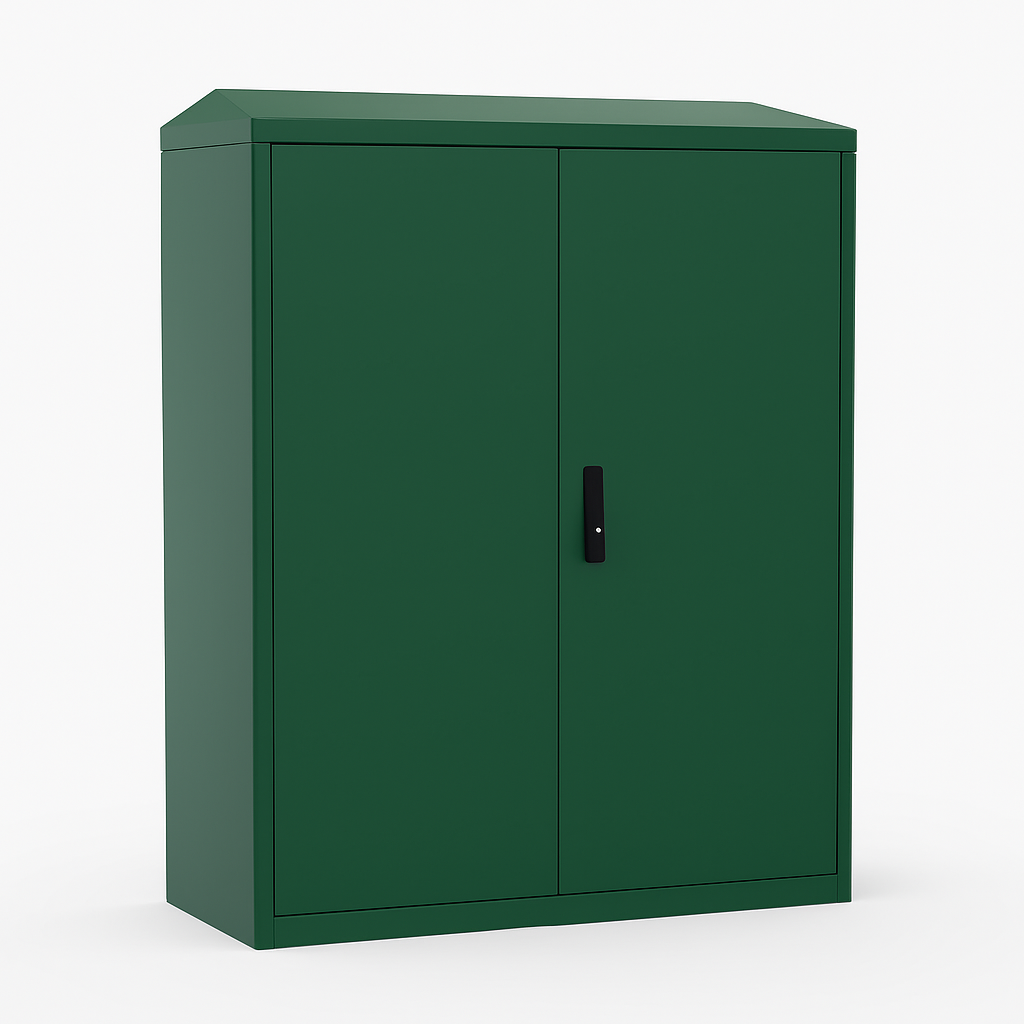

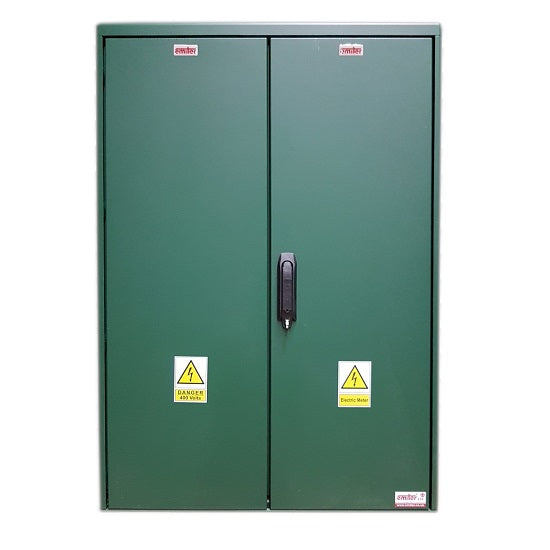

GRP Cabinet 800 x 1150 x 320 Green

Ampira GRP Cabinet 800 x 1150 x 320

Key Specifications:

External Dimensions (W x D x H): 800 x 320 x 1150 mm

Internal Clearances: 790 x 250 x 1010 mm

Backboard Size: 780 x 18 x 1080 mm

Door: Double, removable

Lock: Three-point cylinder lock

Weight: Approx. 40kg

Installation: Surface/floor or wall mountable

Material: UV-stable, weather-resistant GRP

Finish (External): RAL 6005 Green – Smooth semi-gloss

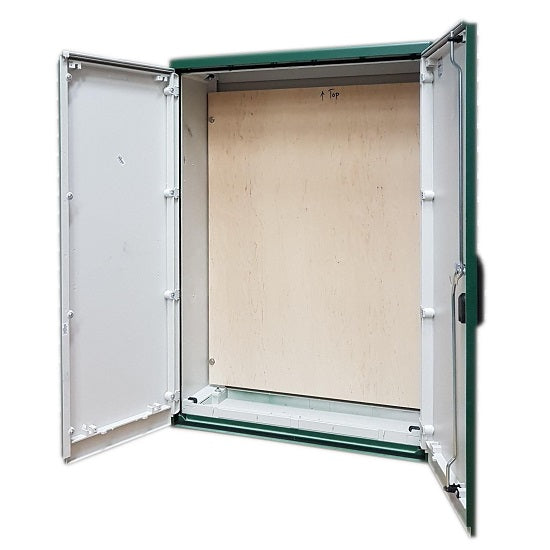

Finish (Internal): White GRP with 18mm treated plywood backboard

Ingress Protection: IP54

Fire Resistance: Class 2 – 30-minute fire-rated resin

Installation:
This GRP enclosure is suitable for both floor and wall mounting. For floor installation, place the cabinet on a level concrete base and drill through the GRP floor using pre-marked or suitable points. Secure with concrete anchor bolts to ensure a stable, weatherproof installation.

For wall mounting, remove the internal plywood backboard, drill fixing holes through the rear panel, and mount using appropriate heavy-duty wall fixings. Reattach the backboard once secured. Ensure the wall can support the full weight of the cabinet and its contents.

A minimum of two installers is recommended. Always follow appropriate health and safety procedures and use suitable fixings for the specific site conditions.

About our cabinet

Our GRP Enclosure is engineered to meet BS standards and the requirements of UK Distribution Network Operators (DNOs). Designed for reliability and protection, this IP54-rated enclosure is ideal for both floor-mounted and optional wall-mounted setups.

With a single door and three-point locking system, the cabinet provides secure storage for a wide range of electrical or industrial equipment. The cylinder lock includes a built-in ring to allow additional padlock security (padlock not included), and heavy-duty hinges offer resilience against tampering and weathering.

Crafted from high-quality GRP, this cabinet is suitable for utilities, local authorities, and industrial sectors requiring dependable, weather-resistant equipment housing. The enclosure is made with Class 2 fire-retardant resin, providing 30-minute fire resistance for added safety.
